CATL 3.2V 314Ah LiFePO4 Battery Cell | High Capacity Deep Cycle Prismatic

Product Details:

Upgrade your energy storage with the high-performance CATL 3.2V 314Ah LiFePO4 Battery Cell. Known for its exceptional capacity, safety, and lifespan of over 7000 cycles, this prismatic lithium iron phosphate cell is the ultimate choice for solar power systems, EVs, and large-scale power banks.

Place of Origin:	China
Brand Name:	CATL
Certification:	CE
Model Number:	314Ah Prismatic Cell

Payment & Shipping Terms:

Retail Price:	/
Wholesale Price:	Negotiable
Packaging Details:	cartons or plywoods
Payment Terms:	T/T

Category: Lifepo4 battery

Description
Reviews (0)

Nominal Capacity:	314Ah	Nominal Voltage:	3.2V
Internal Impedence:	0.17±0.05mΩ	Operating Votage:	2.5V – 3.65V
Dimension:	174.26±0.8204.41±0.871.65±0.8mm	Battery Weight:	5.49±0.30Kg

Product Description

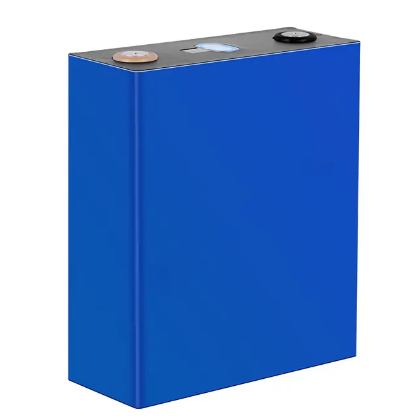

CATL 3.2V 314Ah Lithium Iron Phosphate LiFePO4 Battery

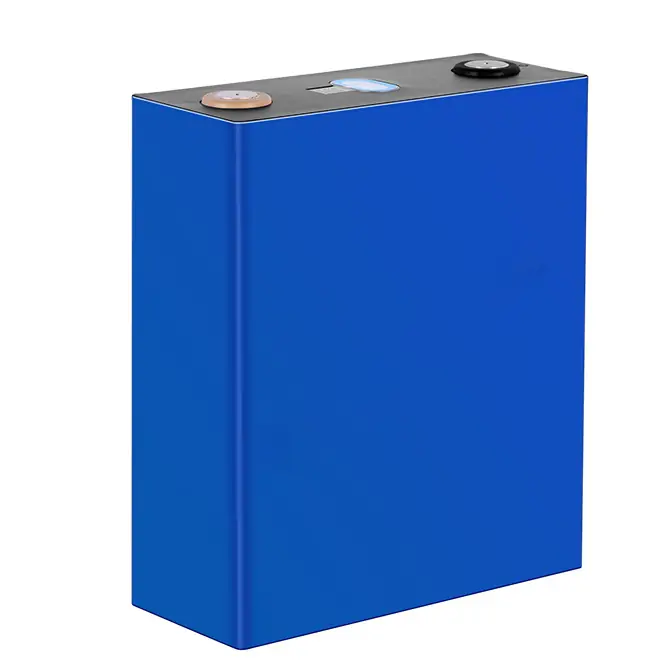

CATL 314Ah LiFePO4 Battery Cell

The CATL 314Ah LiFePO4 battery cell is a high-capacity energy storage solution perfect for large-scale energy storage systems. It serves as an exceptional upgrade to the CATL 280Ah lifepo4 battery cells. The new 314Ah LiFePO4 cell offers 12% higher capacity than its 280Ah predecessor within the exact same dimensions, and its actual deliverable capacity often exceeds 320Ah. It is manufactured by Contemporary Amperex Technology Co. Limited (CATL), a world-leading Chinese battery manufacturer.

This lifepo4 battery boasts a nominal capacity of 314Ah and a nominal voltage of 3.2V. Engineered to deliver exceptional energy density and a prolonged cycle life of more than 7000 cycles at 70% SOH. This battery cell is widely recognized in the industry for its uncompromising safety performance and long-term reliability.

CATL 314Ah Specifications:

Parameter	Specification
Typical capacity	314 Ah
Typical Energy	1004.8Wh
Operating voltage	2.5~3.65V, T>0°C / 2.0~3.65V, T≤0°C
Impedance (1KHz)	0.17±0.05mΩ, Fresh cell (~30%SOC)
Shipping capacity	99±1Ah
Standard charge power	0.5P, 25±2°C
Max. continuous charge power	0.5P
Standard charge voltage	Cell max voltage 3.65V
Standard discharge power	0.5P, 25±2°C
Maximum discharge power (continuous)	0.5P
Discharge cut-off voltage	2.5V, T>0°C / 2.0V, T≤0°C
Residual capacity loss	Per month ≤3.5%, First Month
Operating temperature	Charging: 0~60°C, Discharging: -20~60°C
Cell Weight	5.49±0.30Kg
Storage temperature	-35~60°C
Storage ambient humidity	< 85% ROH, no condensation

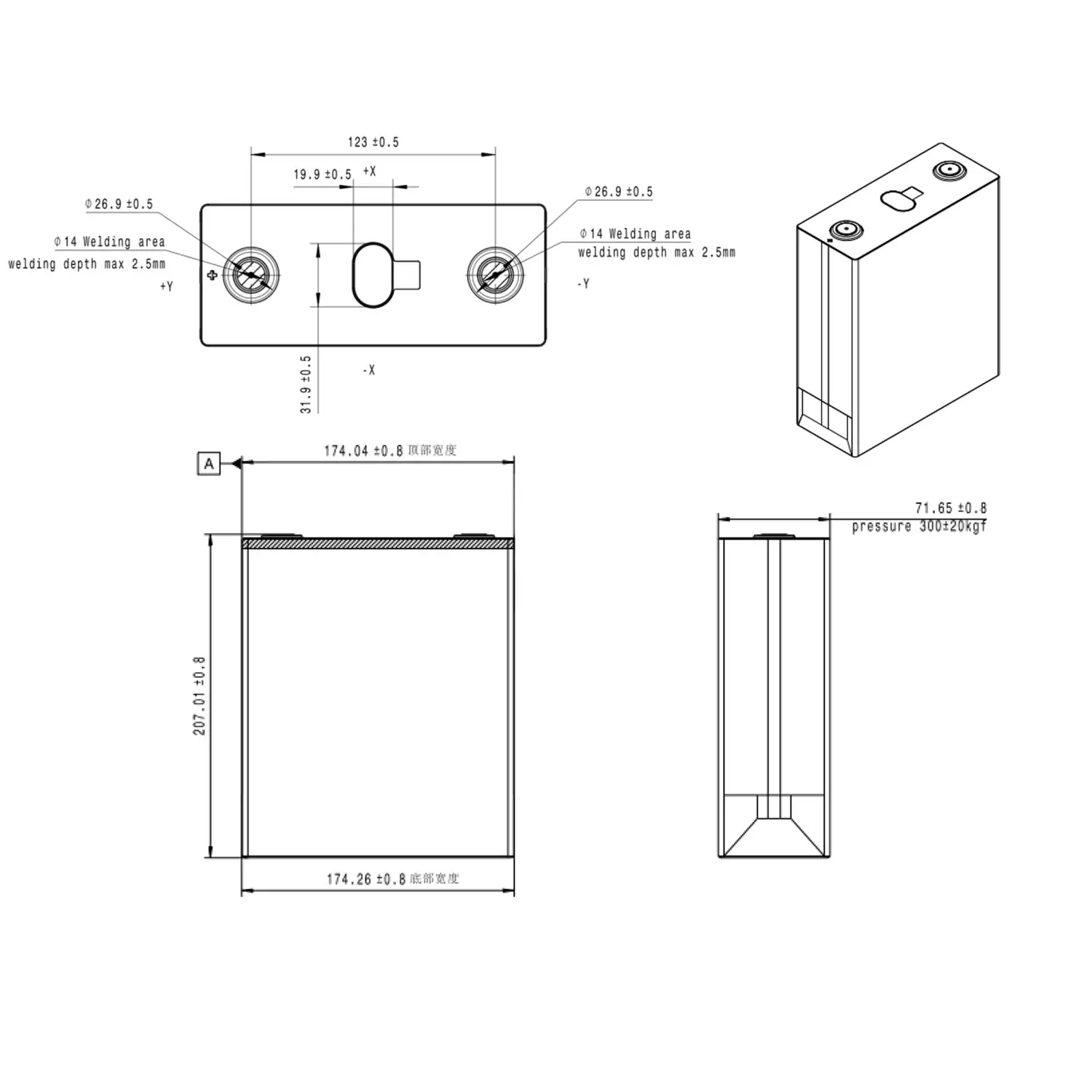

Typical dimension(WHT)	174.26±0.8 * 204.41±0.8 * 71.65±0.8mm
Rest SOC	≥8%
Altitude	＜5000m
Cycle performance	7000 Cycles@70%SOH
