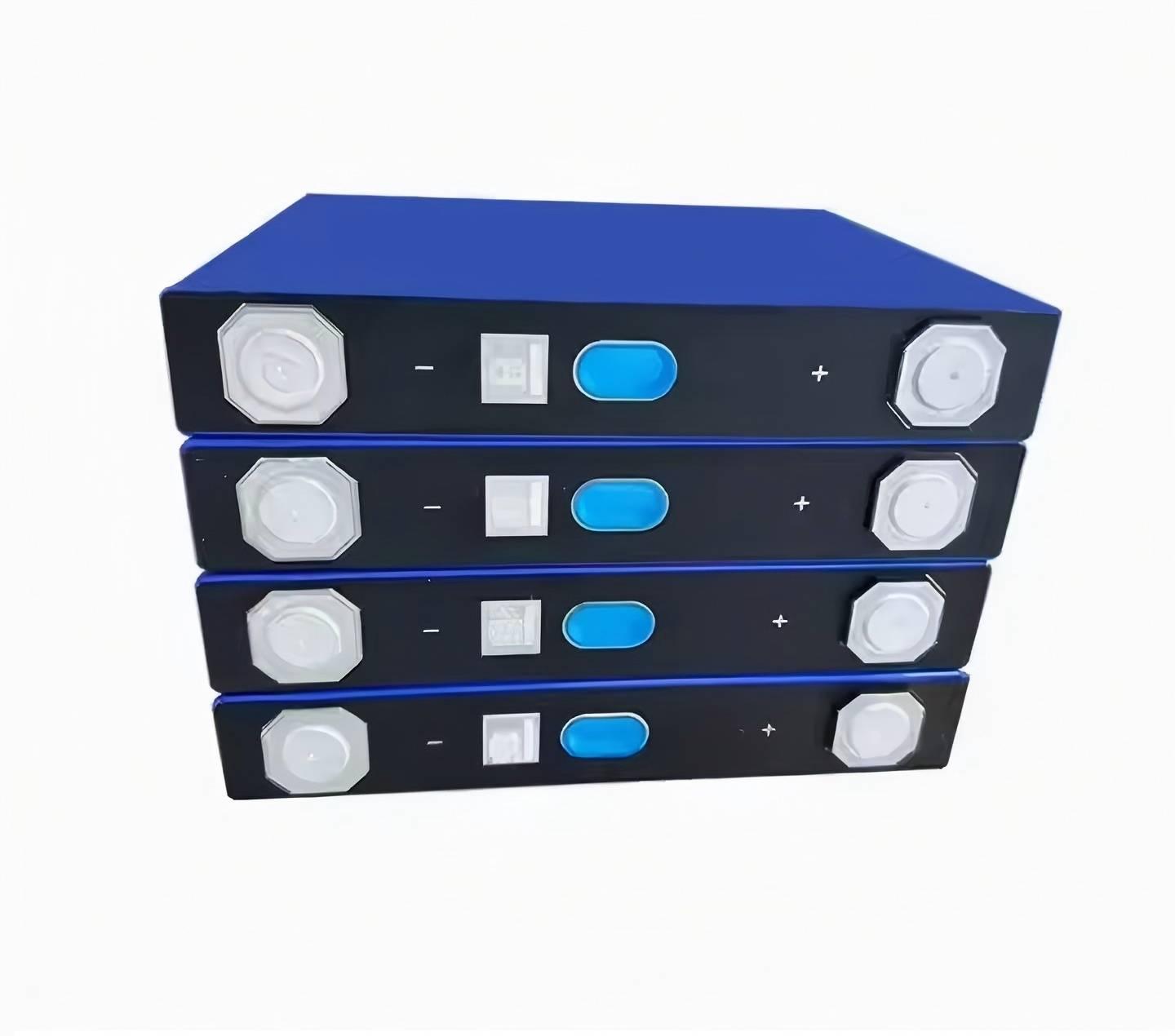

EVE 3.2V 125Ah LiFePO4 Battery Cell | High Discharge Rate Prismatic Cell

Features of 125Ah LiFePO4 Battery Cell

Automated Manufacturing: Ensures high production consistency and reliable battery performance.

Ultra-Safe Design: Built with explosion-proof technology to guarantee zero leakage and secure operations.

Stable Output: Features extremely low internal resistance (IR), high capacity retention (CR), and steady high-rate discharging.

Customizable Solutions: Custom-made battery configurations tailored to meet specific customer requirements.

Super Long Lifespan: Offers an ultra-long cycle life of up to 4,000 cycles for maximum cost-effectiveness.

Environmentally Friendly: Fully compliant with strict environmental system certifications for a greener footprint.

3.2V 125Ah LiFePO4 Cell Specifications

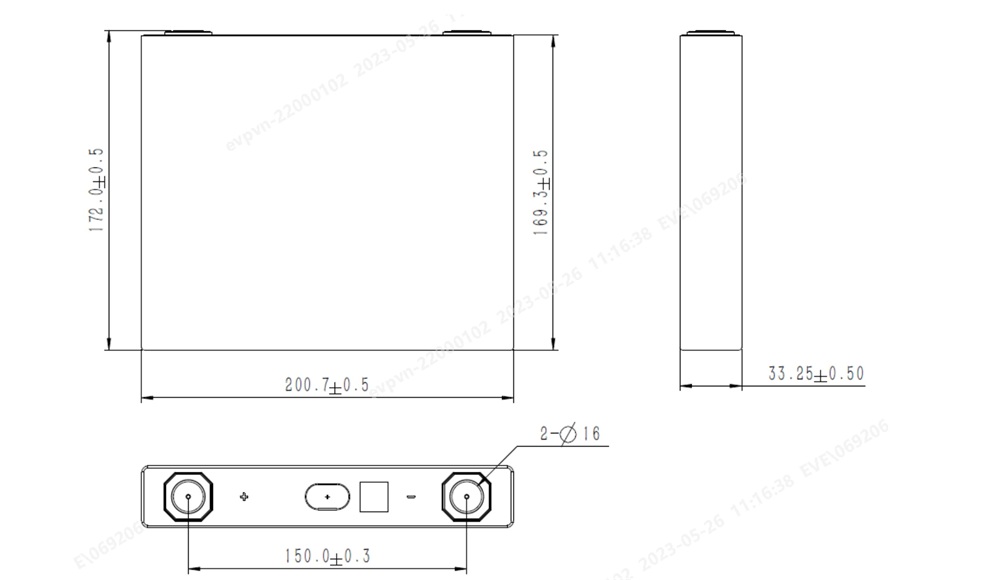

ParameterSpecificationNominal Capacity125AhNominal Voltage3.2VInitial IR0.40 m2 + 0.05 mΩWeight2390g士 71gCharging Cut-off Voltage3.65 VDischarging Cut-off Voltage2.5V (T>0℃) / 2.0V (T≤ 0℃)Charging Temperature-10℃~65℃Discharging temperature-35℃~65℃Storage Temperature-20℃~45℃Model NameLF125PCycle Life4000 CyclesStandard Charging/Discharging Current125AMaximum continues Charging/Discharging current375A, 3C 25+2°CMaximum instantaneous Charging current500A, 30 s,≤ 40% SOC, 25°C + 2°CMaximum Instantaneous Discharging Current625A, 30 s,≥ 30% SOC, 25°C + 2°CHeight(H) with terminal172.00 mm 士 0.50 mmHeight(h) without terminal169.30 mm 士 0.50 mmLength200.70 mm 士 0.50 mmThickness33.25 mm + 0.50 mm

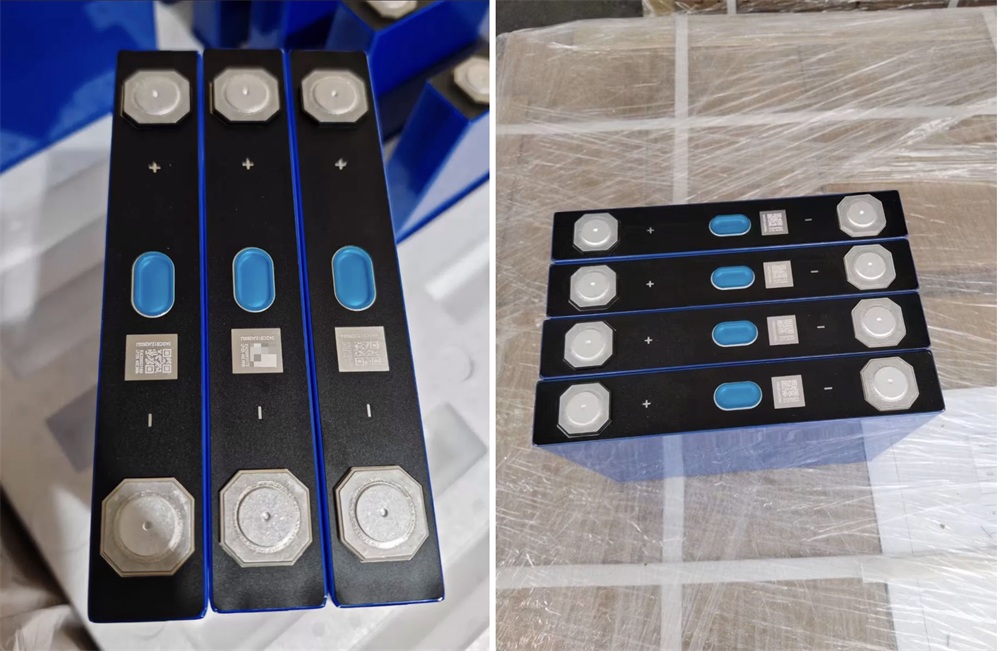

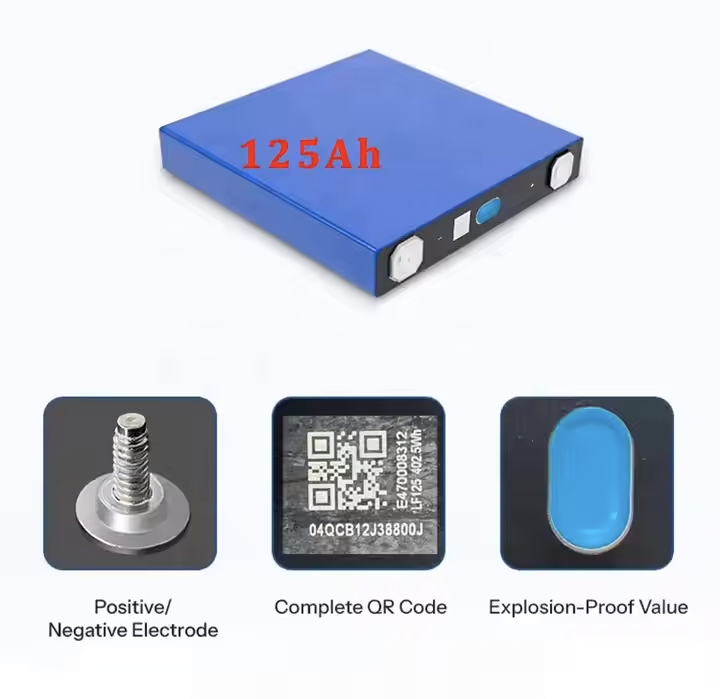

Product Details

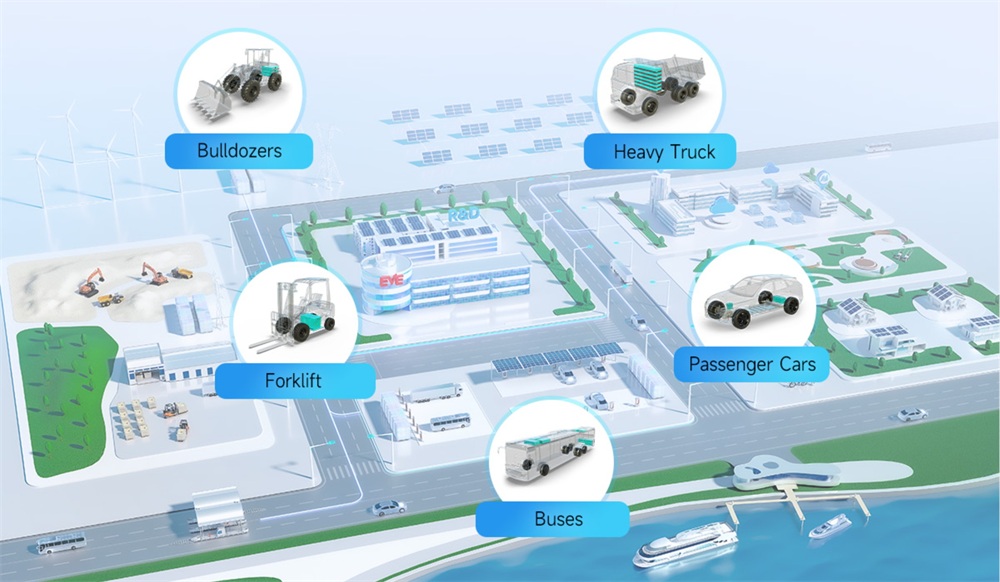

Applications of High Rate LiFePO4 Cells

Ideal for high-power electric vehicles and industrial equipment, including excavators, heavy trucks, forklifts, and passenger cars.

Perfectly suited for heavy-duty machinery such as bulldozers, large commercial trucks, electric forklifts, transit buses, and other demanding passenger vehicles.

Transportation and Handling Requirements

It is prohibited to ship these lithium battery cells with inflammable, explosive, or corrosive materials in the same vehicle. Stacking is restricted during large package transportation to ensure safety.

The battery products must not be exposed to rain, snow, or other liquid substances without adequate protective covering, nor should they be subjected to mechanical damage or excessive shock.

While handling, utilize specialized lift trucks or proper tools to safely load and unload the products. Handle with extreme care; do not drop, throw, or squeeze the batteries, which may cause cell damage or severe personal injury. It is strictly prohibited to store or transport cells alongside corrosive substances such as strong acids and alkalis.
