Grade A 3.2V 206Ah LiFePO4 Battery Cell | Prismatic Lithium Iron Phosphate

Product Details:

Maximize your energy storage with the high-performance Grade A 3.2V 206Ah LiFePO4 Battery Cell. Built for durability and stable power delivery, this prismatic lithium iron phosphate cell is the ideal solution for deep cycle applications including solar power systems, marine setups, RVs, and custom EV battery packs.

Place of Origin:	China
Brand Name:	OEM
Certification:	CE, RoHS
Model Number:	206Ah Prismatic Cell

Payment & Shipping Terms:

Retail Price:	/
Wholesale Price:	Negotiable
Packaging Details:	cartons or plywoods
Payment Terms:	T/T

Category: Lifepo4 battery

Description
Reviews (0)

Nominal Capacity:	206Ah	Nominal Voltage:	3.2V
Internal Impedence:	≤ 0.40mΩ	Operating Votage:	2.5V – 3.65V

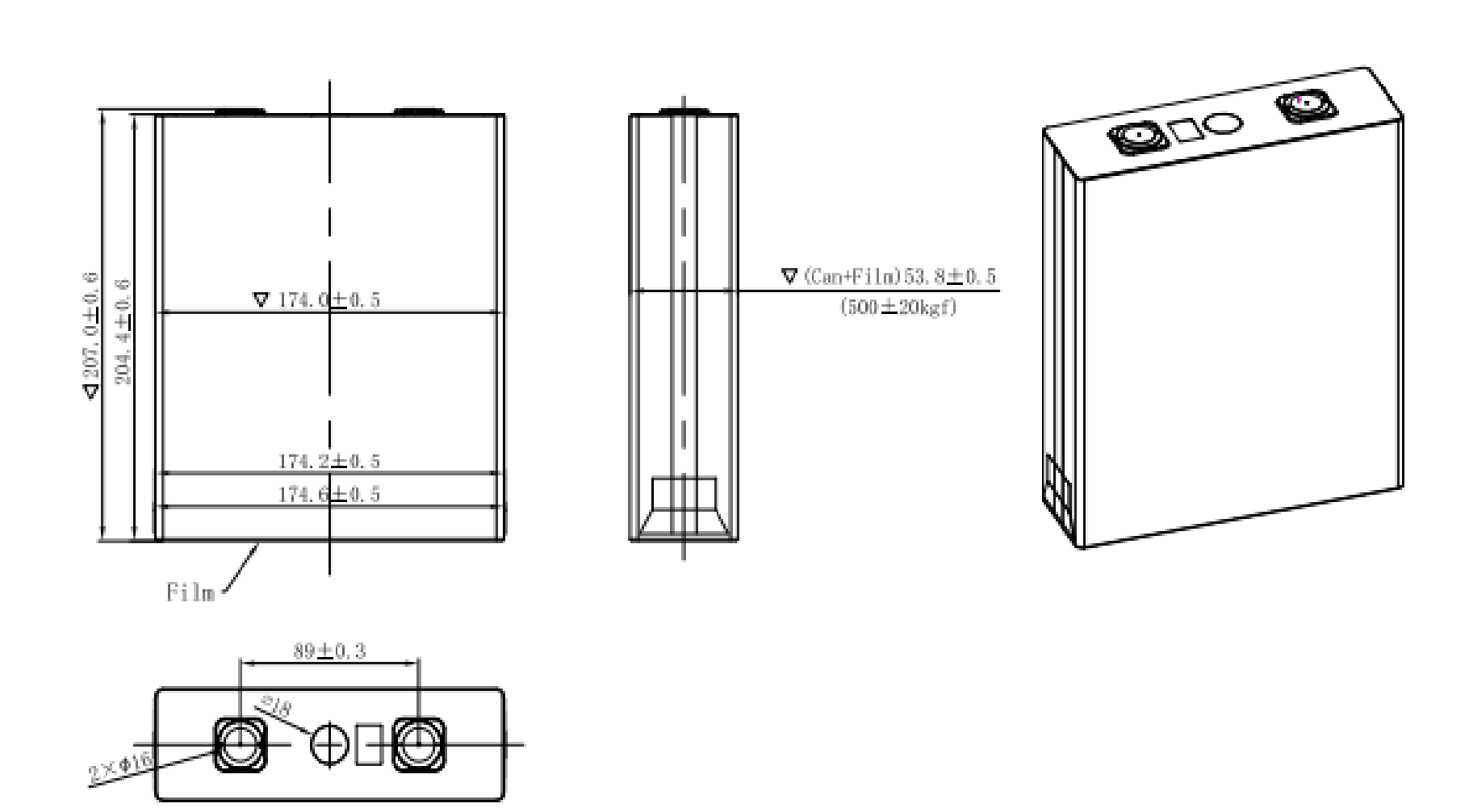

Dimension:	174.6 x 53.8 x 207 mm	Battery Weight:	4.00 ± 0.20 kg

Product Description

Grade A 3.2V 206Ah Lithium Iron Phosphate Lifepo4 Battery Cell

Product Name:Grade A 3.2V 206Ah Lithium Iron Phosphate Lifepo4 Battery Cell

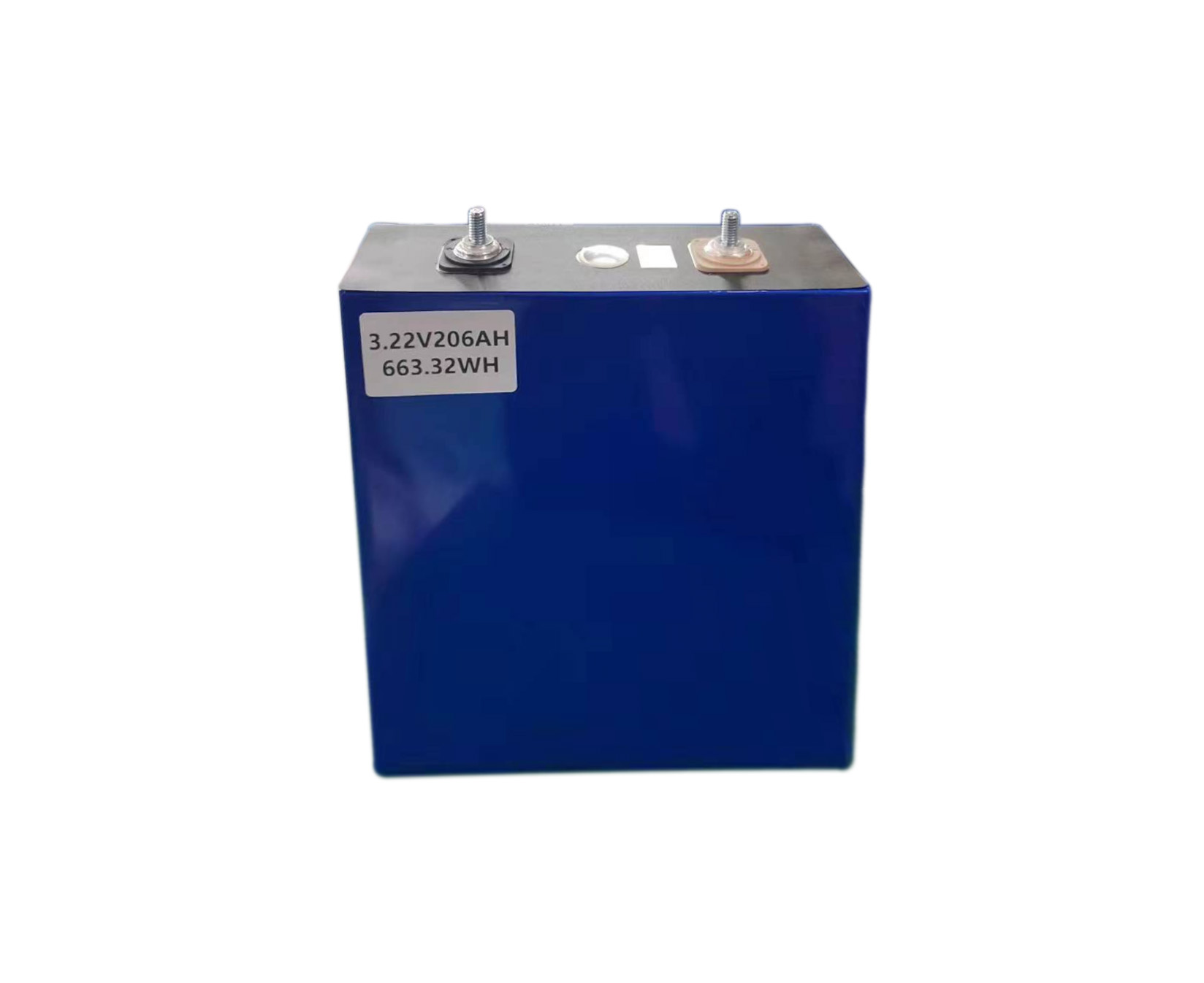

Grade A 3.2V 206Ah Lithium Iron Phosphate LiFePO4 Battery Cell

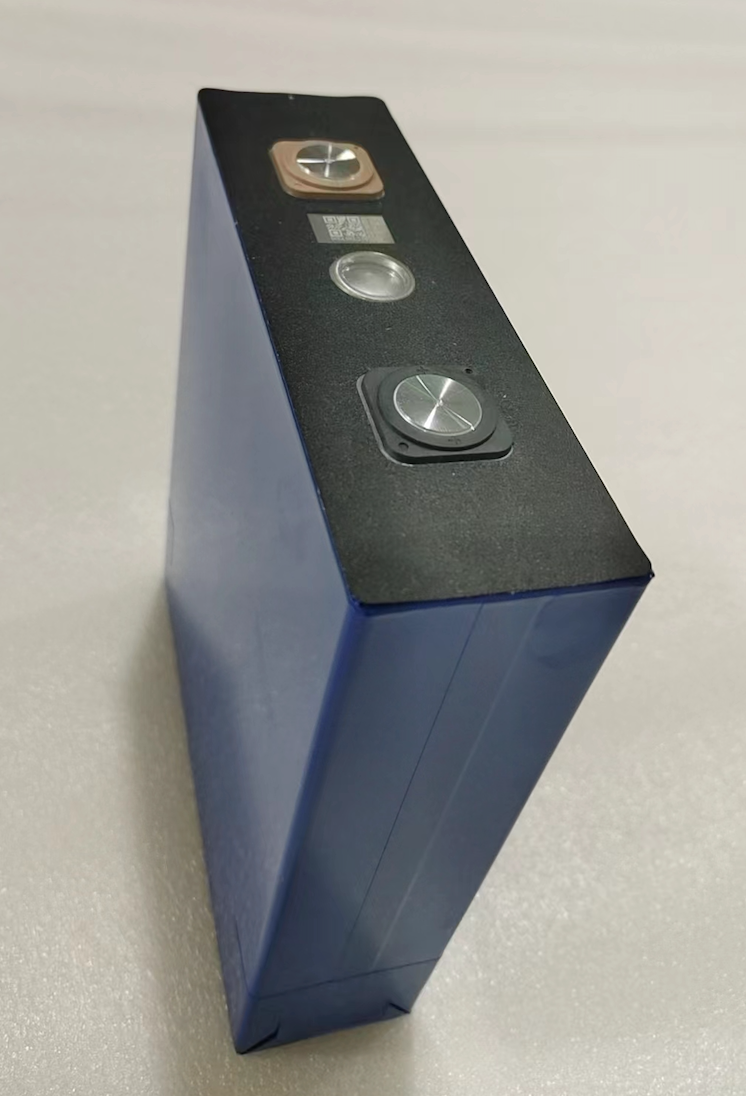

3.2V 206Ah Prismatic LiFePO4 Battery Cell Top View

3.2V 206Ah LiFePO4 Cell Specifications:

Item	Parameters	Condition
Typical Capacity	206Ah	At 0.5C discharge current (25±2℃)
Typical Voltage	3.22V	At 1/3C discharge current (25±2℃)
Minimum Capacity	206Ah	At 1.0C discharge current (25±2℃)
Operating Voltage	2.5V-3.65V	T>0℃
	2.0V-3.65V	T≤0℃
Impedance (1KHz)	≤0.40mΩ	At a fresh state, 30% SOC
Standard Charging Current	103.0A	25±2℃
Standard Discharging Current	103.0A	25±2℃
Shipping Capacity	20~50% SOC	N.A.
Charging Operating Temperature	0–55℃
Discharge Operating Temperature	-20–55℃
Weight	4.00±0.20kg
Size	174.6 x 53.8 x 207 mm	N.A.
