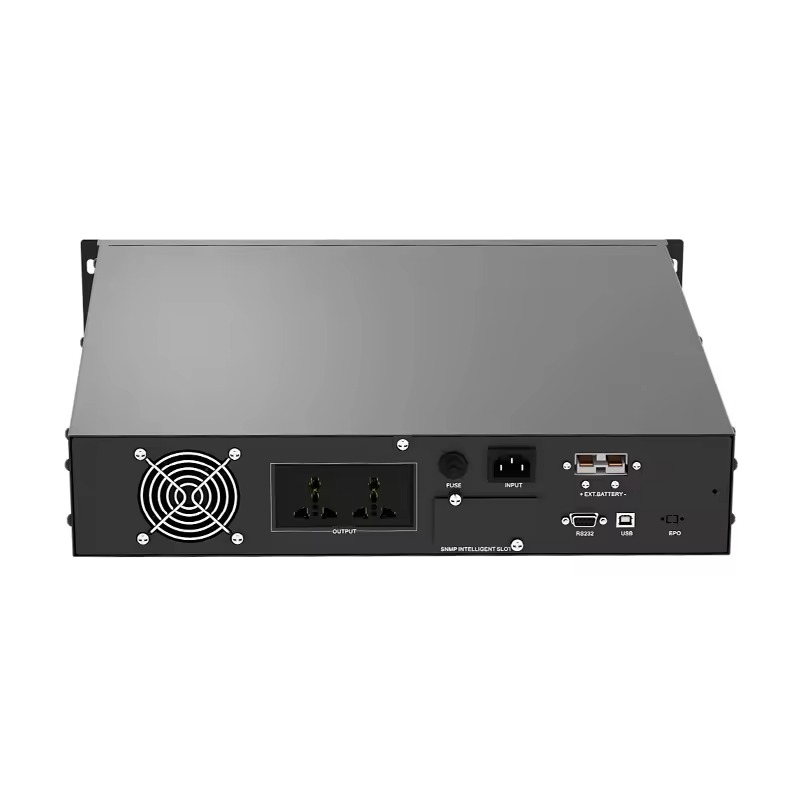

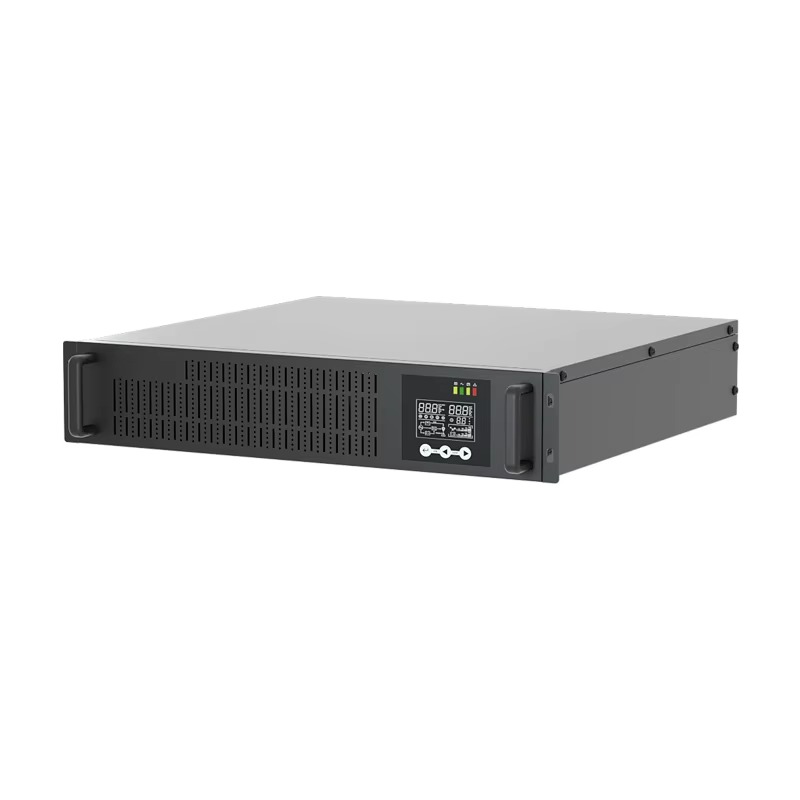

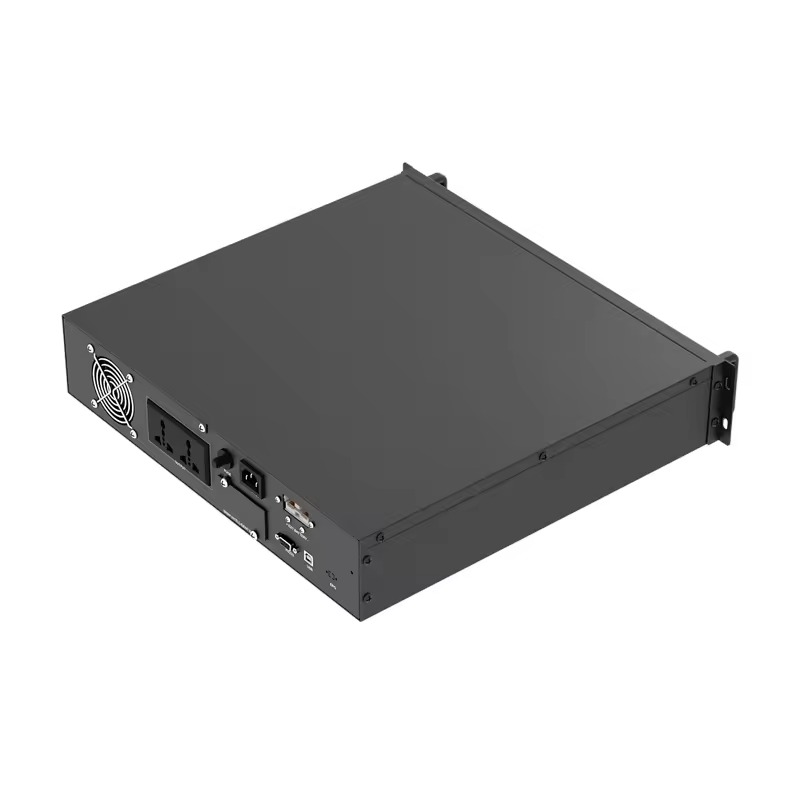

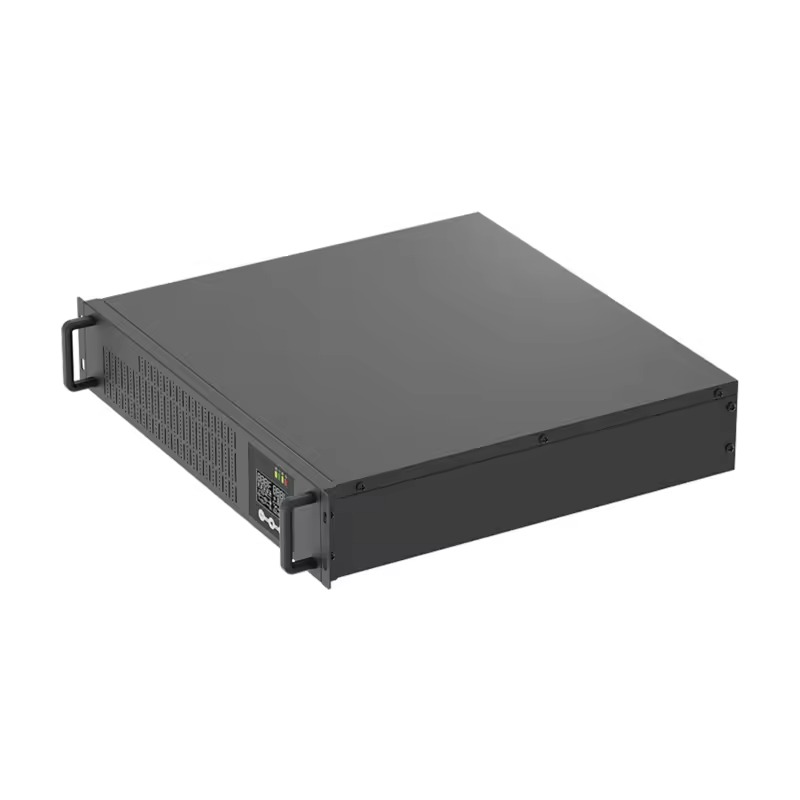

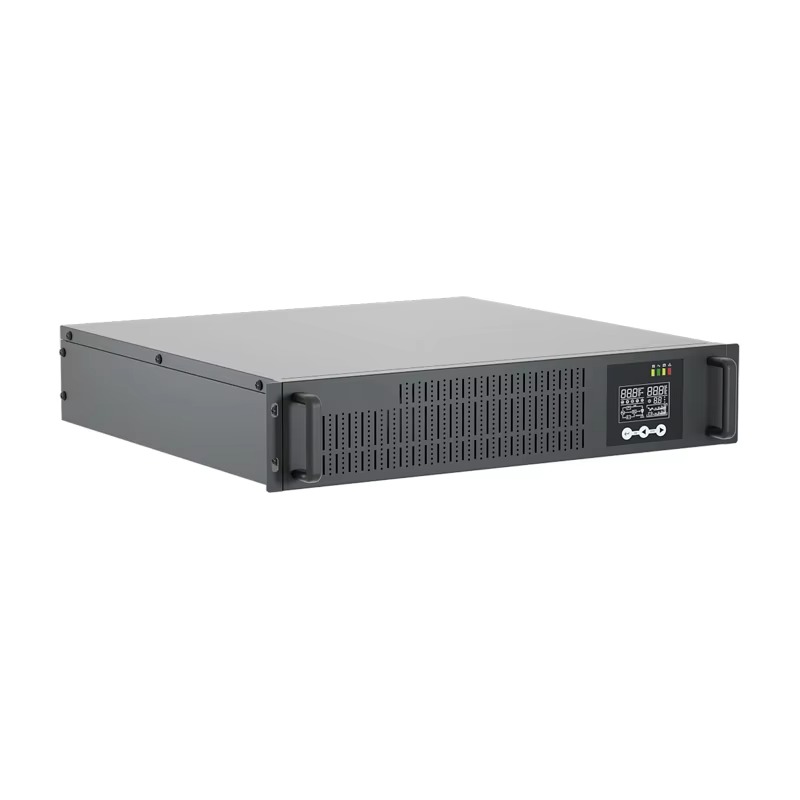

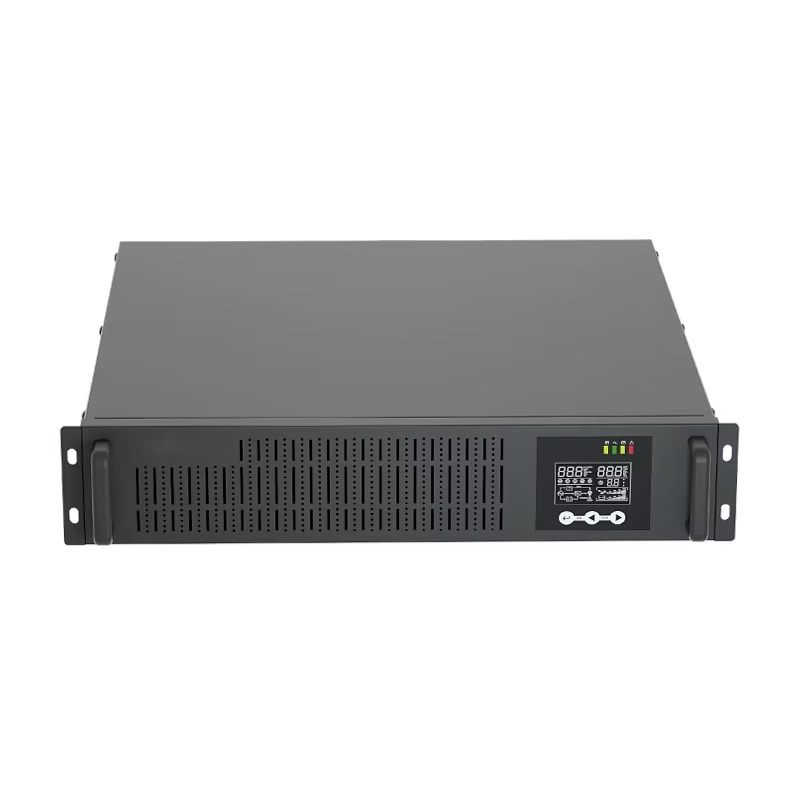

Rack-mount, 2U double-conversion online UPS with a 1.0 output power factor. Equipped with advanced DSP digital control technology, it delivers high performance and enhanced system reliability. Featuring ECO and frequency inverter operation modes, this versatile UPS is designed to meet modern power protection requirements. Ideal for critical IT applications, including servers, workstations, storage systems, and sensitive switching and control equipment.
Spec of rack mount online UPS 1 KVA
| Model | RM1101 |
|---|---|
| Power Capacity | 1KVA / 1KW |
| Battery Voltage | 36VDC |
| Power Factor | 1.0 |
| Dimension (D×W×H mm) | 440 × 420 × 88 |
| Weight (kg) | 6 |
| INPUT | |
| Input Format | L + N + PE |
| Rated Voltage | 208/220/230/240 VAC |
| Voltage Range | 110V–300VAC |
| Frequency Range | 50/60Hz ±6Hz (Default), ±10Hz (Settable) |
| Power Factor | ≥0.99 |
| Harmonic Distortion (THDi) | ≤3% (Linear Load); ≤5% (Non-linear Load) |
| OUTPUT | |
| Output Format | L + N + PE |
| Rated Voltage | 208/220/230/240 VAC |
| AC Voltage Regulation | ±1% |
| Frequency Range | AC Mode: same as AC; Battery Mode: 50/60Hz ±1% |
| Harmonic Distortion (THDi) | ≤1% (Linear Load); ≤3% (Non-linear Load) |
| Power Factor | 1.0 |
| Overload Capacity | AC Mode: 30min @102–110%, 10min @110–130%, 30s @130–150%, 200ms @>150% Battery Mode: 1min @102–110%, 10s @110–130%, 3s @130–150%, 200ms @>150% |
| Waveform | Pure Sine Wave |
| TRANSFER TIME | |
| AC Mode to Battery Mode | 0ms |
| Inverter to Bypass | 4ms |
| EFFICIENCY | |
| AC Mode | 94.5% @220VAC |
| Battery Mode | 88.5% |
| BATTERY | |
| Battery Type | Depending on applications |
| Battery Numbers | 3 |
| Charging Current | 5A (Default), 1–12A Adjustable |
| Charging Mode | Two-stage / Three-stage |
| DISPLAY | |
| LCD Display | Working mode / Load / Input / Output |
| ENVIRONMENT | |
| Operation Temperature | 0–40℃ |
| Storage Temperature | -15–60℃ (Battery: 0–40℃) |
| Relative Humidity | 20%–95% (No condensation) |
| Altitude | ≤1000m |
| Noise | <45dB @1m |
| MANAGEMENT | |
| RS232 / USB | Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Mac |
| Optional SNMP | Power management via SNMP manager and web browser |
Feature of Single phase online UPS 1KVA
- True double conversion
- Microprocessor control optimizes reliability
- DSP technology guarantees high performance
- Input power factor correction
- Output power factor 1.0
- Extremely wide input voltage window of 110 VAC to 300 VAC
- High efficiency up to 95.5%
- 50Hz/60Hz frequency converter mode
- ECO mode for energy saving
- Emergency power off (EPO) function
- Graphic LCD display with interactive multilingual user interface
- Adjustable battery numbers
- Adjustable charging current via LCD panel
- Adjustable charging mode with two stages or three stages
- Charger capacity expansion to 12A for long-run models
- Programmable output voltage
- Cold start by battery without grid input
- Smart battery charging technology for maximum battery durability
- Generator compatible
- Extension slot for SNMP
